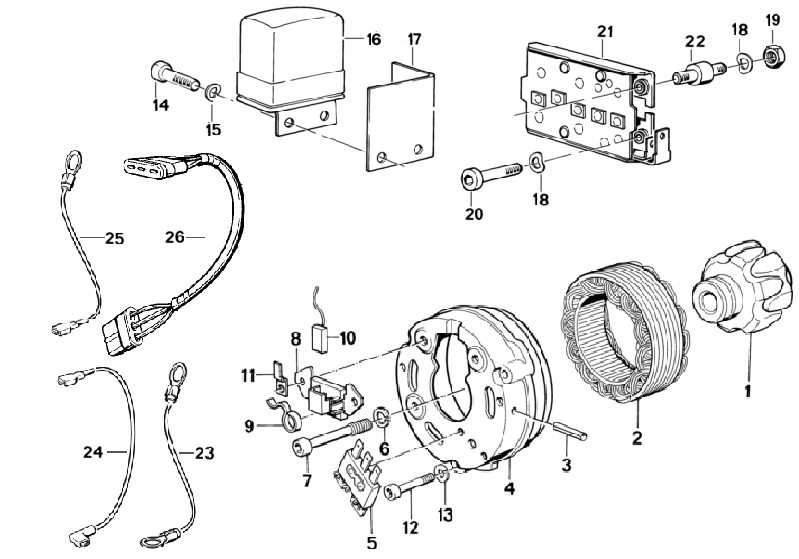

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| x | 12311351585 | Alternator 14V 13A 180W Ø 105 mm | R50/5 - R75/5 | 1 |
| 12311357497 | Alternator 14V 20A | R60/6 - R90/6 | 1 | |
| 12311243287 | Alternator 14V 19A | R60/7 - R100 | 1 | |
| 12311358132 | Alternator 14V 18A 260W Ø 105 mm | R90S | 1 | |
| 1 | 12311244642 | Rotor 12V, 280W Bosch | R60/6 - R100 | 1 |
| 2 | 12311243001 | Field coil | 1 | |
| 3 | 12311350769 | Anti rattle pin | 2 | |
| 4 | 12311243002 | Housing | 1 | |
| 5 | 12318002349 | Connector | 1 | |
| 6 | 07119932090 | Wave washer B8 | 1 | |
| 7 | 12318002348 | Allen head hex screw | 1 | |
| 8 | 12311243003 | Brush holder plate | 1 | |
| 9 | 12311350786 | Compression spring | 2 | |
| 10 | 12311244480 | Carbon brush set | 1 | |
| 11 | 12318002351 | Cable terminal D=5.3 mm | 3 | |
| 12 | 12312322417 | Allen head screw M5x45 | 3 | |
| 13 | 07119932047 | Wave washer B5 | 2 | |
| 14 | 07119900311 | Fillister head screw M5x16 | 2 | |
| 15 | 07119932047 | Wave washer B5 | 2 | |
| 16 | 12321244409 | Voltage regulator 14.2V WEHRLE | 1 | |
| 17 | 12321352472 | Bracket | 1 | |
| 18 | 07119932047 | Wave washer B5 | 2 | |
| 19 | 07119922038 | Hex nut M5 | 1 | |
| 20 | 07119919902 | Allen head hex bolt | 4 | |
| 21 | 12311244063 | Diode assembly (14V 22A) | 1 | |
| 22 | 12311358131 | Rubber mounting | 4 | |
| 23 | 12311358130 | Earth cable | 2 | |
| 24 | 12331357639 | Wiring set | 1 | |
| 25 | ||||
| 26 | 12321243178 | Wiring set | 1 |
