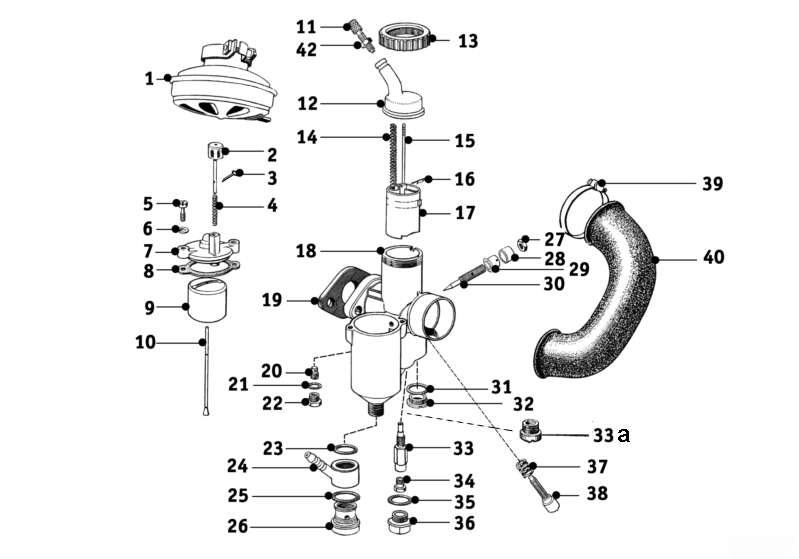

| No. |
Part nr. |
Description |
Add info. |
Qty. |
| x |
13110039002 |
Carburetor Bing 1/22/28 |
R25 |
1 |
| x |
13110039004 |
Carburetor Bing 1/22/44 |
R25/2 |
1 |
| x |
13110039006 |
Carburetor Bing 1/24/41 - 1/24/42 |
R25/3 |
1 |
| x |
13110039006DS |
Carburetor gasket set |
R25, R25/2, R25/3 |
1 |
| 1 |
13720043005 |
Air filter |
R25/3 |
1 |
| 2 |
13110039161 |
Tickler |
|
1 |
| 3 |
13110039165 |
Split pin |
|
1 |
| 4 |
13110039164 |
Tickler spring |
|
1 |
| 5 |
13110039156 |
Hex screw |
|
2 |
| 6 |
13110039193 |
Spring washer |
R25/3 |
1 |
| 7 |
13110039158 |
Cover, without tickler |
|
1 |
| 8 |
13110042150 |
Gasket |
|
1 |
| 9 |
13110039186 |
Float |
|
1 |
| 10 |
13110039188 |
Float needle |
|
1 |
| 11 |
13110039178 |
Cable adjustment screw |
|
1 |
| 12 |
13110039109 |
Cover |
R25, R25/2 |
1 |
|
13110039108 |
Cover, with pipe bend |
R25/3 |
1 |
| 13 |
13110039115 |
Cover ring |
|
1 |
| 14 |
13110039169 |
Spring |
|
1 |
| 15 |
13110039172 |
Needle Bing 46-921 |
R25, R25/2 |
1 |
|
13110039173 |
Needle Bing 46-222 |
R25/3 |
1 |
| 16 |
13110039175 |
Retaining clip, old model |
R25, R25/2 |
1 |
|
13110039176 |
Retaining clip |
R25/3 |
1 |
| 17 |
13110039119 |
Carburetor slide Bing 22-460 |
R25, R25/2 |
1 |
|
13110039120 |
Carburetor slide Bing 22-470 |
R25/3 |
1 |
| 18 |
13110039006 |
Bing carburetor |
R25/3 |
1 |
|
13110039004 |
Bing carburetor 1/22/44 |
R25/2 |
1 |
| 19 |
13110042146 |
Flange gasket |
|
1 |
| 20 |
13110039139 |
Idle jet nr. 45 |
R25 |
1 |
|
13110039137 |
Idle jet nr. 35 |
R25/2, R25/3 |
1 |
| 21 |
13110042126 |
Gasket |
|
1 |
| 22 |
13110039196 |
Screw plug |
M7x0.75 |
1 |
| 23 |
13110042120 |
Gasket ring |
|
1 |
| 24 |
13110039191 |
Fuel hose connection |
|
1 |
| 25 |
13110042122 |
Gasket ring |
|
1 |
| 26 |
13110039192 |
Screw plug |
|
1 |
| 27 |
13110039184 |
Hex nut |
|
1 |
| 28 |
13110039185 |
Idle mix screw cap |
|
1 |
| 29 |
13110039183 |
Idle mix screw sleeve |
|
1 |
| 30 |
13110039181 |
Idle mix screw |
|
1 |
| x |
13110039140 |
Idle jet |
R25 |
1 |
| 31 |
13110042134 |
Gasket ring |
|
1 |
| 32 |
13110039198 |
Screw cap |
|
1 |
| 33 |
13110039123 |
Needle jet 1208 |
R25, R25/3 |
1 |
|
13110039121 |
Needle jet 1708 |
R25/2 |
1 |
|
13110039123.6 |
Repair threaded bush |
|
|
| 33a |
13110039194 |
Threaded insert Bing 50-390 |
R25, R25/2 |
1 |
| 34 |
13110039143 |
Main jet nr. 100 |
R25 |
1 |
|
13110039144 |
Main jet nr. 110 |
R25/2 |
1 |
|
13110039145 |
Main jet nr. 145 |
R25/3 |
1 |
| 35 |
13110042130 |
Gasket ring |
|
1 |
| 36 |
13110039197 |
Screw cap |
R25, R25/2 |
1 |
|
13110039199 |
Screw cap |
R25/3 |
1 |
| 37 |
13110039170 |
Spring |
|
1 |
| 38 |
13110039151 |
Stop screw |
R25, R25/2 |
1 |
|
13110039527 |
Stop screw |
R25/3 |
1 |
|
13110039123.6 |
Repair threaded bush |
|
|
| 39 |
13110043103 |
Clamp |
R25/3 |
2 |
| 40 |
11610043108 |
Air tube |
|
1 |
| 42 |
13110039182 |
Hex nut |
|
1 |
