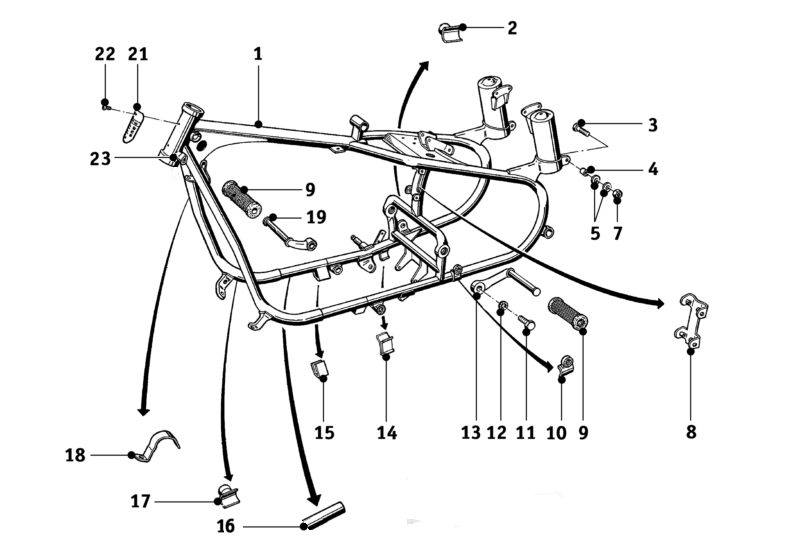

| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|
| 1 | 46514000019 | Frame | R26 | 1 |
| 46514000022 | Frame | R27 | 1 | |
| 2 | 46514000136 | Ball stud, upper | R26 | 1 |
| 3 | 07119912477 | Hex head screw | M8x35 | 2 |
| 4 | 11420561159 | Bushing | 2 | |
| 5 | 11614000131 | Washer | 4 | |
| 7 | 07119922081 | Hex nut | M8 | 4 |
| 8 | 46514000133 | Bracket | 1 | |
| 9 | 46711235428 | Foot peg rubber | 4 | |
| 10 | 46514000151 | Weld piece for pillion footrest | 1 | |
| 11 | 07119914620 | Hex bolt | M12x1.5x40 | 2 |
| 12 | 07119931083 | Washer | Ø 13 mm | 2 |
| x | 07119922147 | Hex nut | M12x1.5 | 2 |
| x | 07119936246 | Serrated washer | J12.5 | 2 |
| 13 | 46514034264 | Footpeg - rear L&R | 110 mm | 2 |
| 14 | 46514000145 | Stop for center stand | R27 | 1 |
| 15 | 46514000143 | Supporting plate | R27 | 2 |
| 16 | 46514000114 | Tube piece | R26 | 2 |
| 17 | 46514000134 | Ball stud, lower | R26, Ø 28mm | 1 |
| 18 | 46514000140 | Retaining plate | R26 | 1 |
| 19 | 46534034150 | Foot peg - front L&R | 50 mm | 2 |
| 21 | 51144034136 | Vehicle identification plate | 1 | |
| S600z | Vehicle identification plate sidecar | LS200, TR500 (Spezial) | ||
| 22 | 07119916604 | Round head bolt | M5x6 | 2 |
| 23 | 32329016007 | Steering lock | 1 | |
| x | 46514034264.7 | Passenger foot peg, folding | black | 2 |
| x | 46514034264.3 | Passenger foot peg, folding | galvanized, Denfeld | 2 |
| x | 61138060104 | Rubber plug | 1 |
