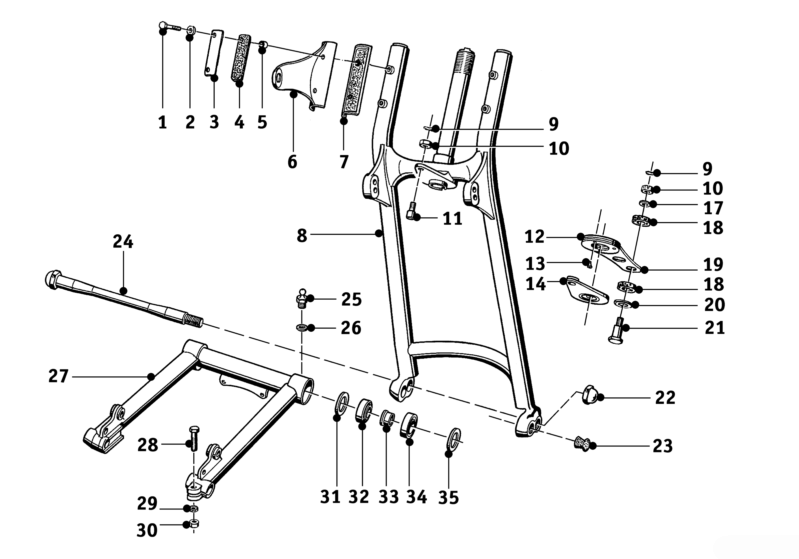

Front fork R26 - R27 - Salis Parts Salis Parts

Welcome to Salis Parts

No.	Part nr.	Description	Add info.	Qty.
x	31422000000	Tapered roller bearing set	upper & lower steering head bearing	1
1	07119913476	Hex head screw	M6x20	4
2	07119936136	Shakeproof washer	J6.4	4
3	31412000347	Attaching plate		2
4	31412000338	Spacer plate		2
5	31412000340	Spacer ring		4
6	31412000306	Headlight bracket - left		1
	31412000314	Headlight bracket - right		1
7	31412000336	Pad		2
8	31412000350	Swing arm		1
9	07119945111	Split pin	2x20	2
10	07119923412	Crown nut	M8	2
11	31412000295	Bolt		1
12	31412000235	Damper washer		2
13	07119949213	Rivet	3x10	3
14	31412000231	Pressure plate		1
17	07119931655	Washer	8.4	1
18	31422000257	Rubber ring		2
19	31412000220	Resistance plate		1
20	07119931851	Washer		1
21	31422000255	Retaining screw		1
22	31412000328	Cap nut		1
23	31412000332	Plug		2
24	31412000320	Bolt		1
25	07119960270	Grease nipple	8x1	1
26	07119963041	Washer	A8 x 11.5	1
27	31412000358	Front wheel swing arm		1
28	31412000293	Clamping screw		1
29	07119936206	Shakeproof washer	8.4	1
30	07119922093	Hex nut	M8x1	1
31	21521020136	Washer		2
32	07119985005	Bearing		2
33	31412000324	Thrust sleeve		2
34	31412000331	Seal ring		2
35	31411231196	Shim	1 - 1.5 - 2 - 2.5 mm	2
	31411231200	Shim	3 mm	2
