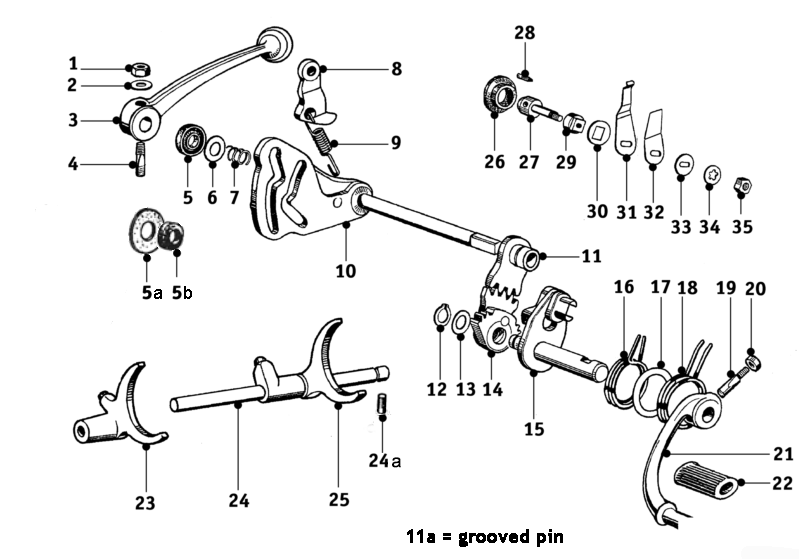

No. Part nr. Description Add info. Qty.
1 Hex nut M5 1
2 Washer Ø 5.2 mm 1
3 Manual shift lever R51/2 - R67/3 1
Manual shift lever R68 1
4 Locking screw 1
5 Seal 12x24x7 R51/3 - R68, 1
5a Friction plate R51/2 1
5b Gasket ring R51/2 1
6 Washer 1
7 Spring 1
8 Release latch 1
Bearing bolt for release latch 1
9 Spring for latch 1
10 Selector shaft without idle contact R51/2 1
Selector shaft with idle contact R51/3 - R68 1
11 Toothed segment 1
11a Grooved pin for toothed segment R51/3 - R68 1
12 Circlip 12x1 1
13 Washer 1
14 Catch - toothed segment 1
15 Lever 1
16 Return spring 1
17 Washer 1
18 Return spring 1
19 Locking screw 8 mm M6 1
20 Hex nut M6 1
21 Foot shift lever 1
22 Rubber grey 1
Rubber black 1
23 Shifter fork 3rd & 4th gear 1
24 Guide shaft 1
25 Shifter fork 1st & 2nd gear 1
26 Rubber cover R51/3 - R68 1
27 Contact bolt R51/3 - R68 1
28 Allen screw M4x6 R51/3 - R68 1
29 Insulation bushing R51/3 - R68 1
30 Insulation washer R51/3 - R68 1
31 Contact spring R51/3 - R68 1
32 Support spring R51/3 - R68 1
33 Washer R51/3 - R68 1
34 Serrated washer J8.4 R51/3 - R68 1
35 Hex nut M6x1 R51/3 - R68 1
