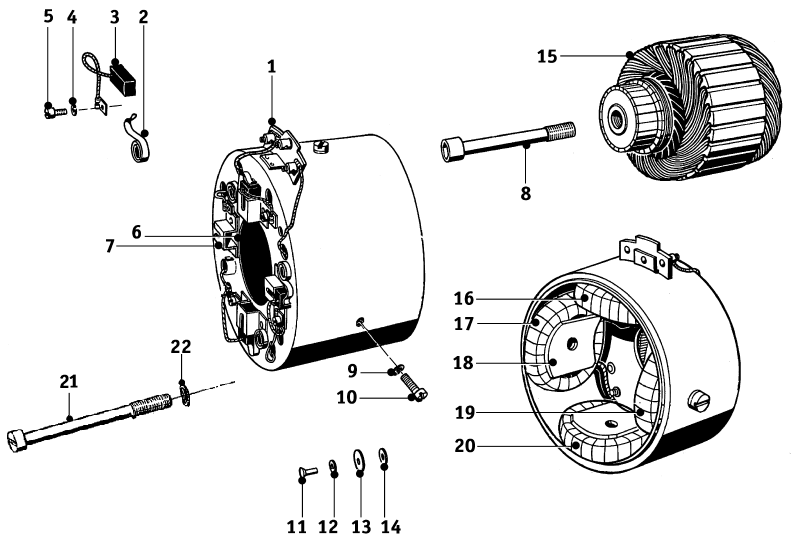

No. Part nr. Description Add info. Qty.
1 Connector R50/2, R50S, R60/2, R69S 1
2 Spring R50/2, R50S, R60/2, R69S 2
3 Carbon brush R50/2, R50S, R60/2, R69S 2
4 Spring washer B4 R50/2, R50S, R60/2, R69S 2
5 Cylinder head screw M4 x 6 R50/2, R50S, R60/2, R69S 2
6 Plate R50/2, R50S, R60/2, R69S 2
7 Brush holder + - R50/2, R50S, R60/2, R69S 2
8 Allen head hex. screw M8 x 70 R50/2, R50S, R60/2, R69S 1
9 Lock washer B6 R50/2, R50S, R60/2, R69S 4
10 Fillister head screw 6 x 15 R50/2, R50S, R60/2, R69S 4
11 Rivet R50/2, R50S, R60/2, R69S 4
12 Insulation washer 6 ΓΈ R50/2, R50S, R60/2, R69S 4
13 Insulation washer R50/2, R50S, R60/2, R69S 4
14 Washer R50/2, R50S, R60/2, R69S 4
15 Armature 12V 100W R50/2, R50S, R60/2, R69S 1
16 Field coil 4 - 12V 100W R50/2, R50S, R60/2, R69S 1
17 Field coil 3 - 12V 100W R50/2, R50S, R60/2, R69S 1
18 R50/2, R50S, R60/2, R69S
19 Field coil 1 - 12V 100W R50/2, R50S, R60/2, R69S 1
20 Field coil 2 - 12V 100W R50/2, R50S, R60/2, R69S 1
21 Allen head hex bolt M6 x 70 R50/2, R50S, R60/2, R69S 2
22 Wave washer B6 R50/2, R50S, R60/2, R69S 2
