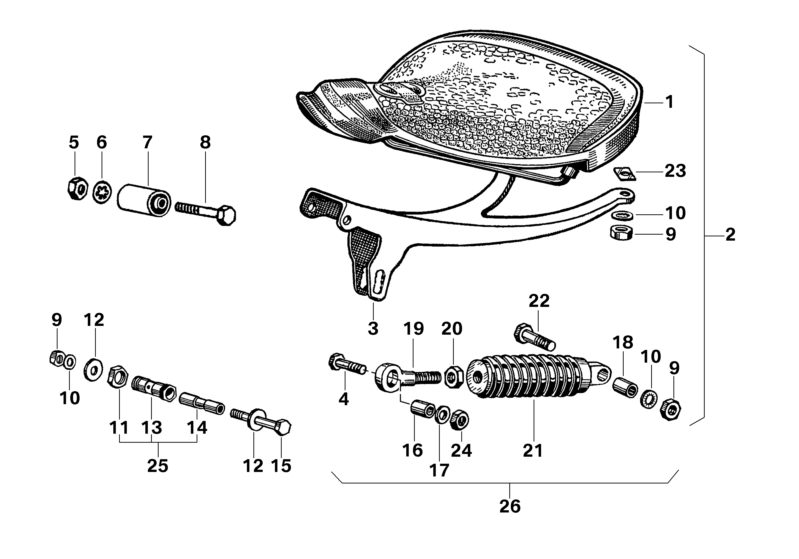

No. Part nr. Description Add info. Qty.
1 52517002004 Saddle deck Pagusa without frame 1
52517002009 Saddle deck Pagusa with frame 1
2 52517002009.L Saddle, frame & chrome spring, 8 mm in combination with nr. 9-15 or 25 1
52517002009.N Saddle, frame & chrome spring, 10 mm in combination with nr. 5-8 1
3 52517002164 Saddle Y-frame, 8 mm bolt in combination with nr. 9-15 or 25 1
52517002165 Saddle Y-frame, 10 mm bolt in combination with nr. 5-8 1
x 2517002009.A Z-bracket 1
4 07119914053 Hex bolt M8x1x30 1
5 07119922121 Hex nut M10x1 1
6 07119936226 Serrated washer J10.5 1
7 52517002141 Silent block 10 mm 1
8 07119914364 Hex bolt M10x1x68 1
9 07119922093 Hex nut M8x1 SW13 1
10 07119932090 Wave washer B8 1
11 see 25
12 see 25
13 see 25
14 see 25
15 07119914089 Hex bolt M8x1 1
16 52517002123 Spacer bushing 1
17 07119932090 Wave washer B8 1
18 52517002124 Spacer bushing 1
19 52517002137 Ring bolt 1
20 07119921616 Hex nut M10x1 1
21 52517002102 Seat spring 1
22 07119914070 Hex bolt M8x1x45 1
24 07119922093 Hex nut M8x1 SW13 1
25 52517002125 Saddle bearing bolt 1
26 Seat spring assembly 1
x 52517002009.B Clamp for saddle frame 1
