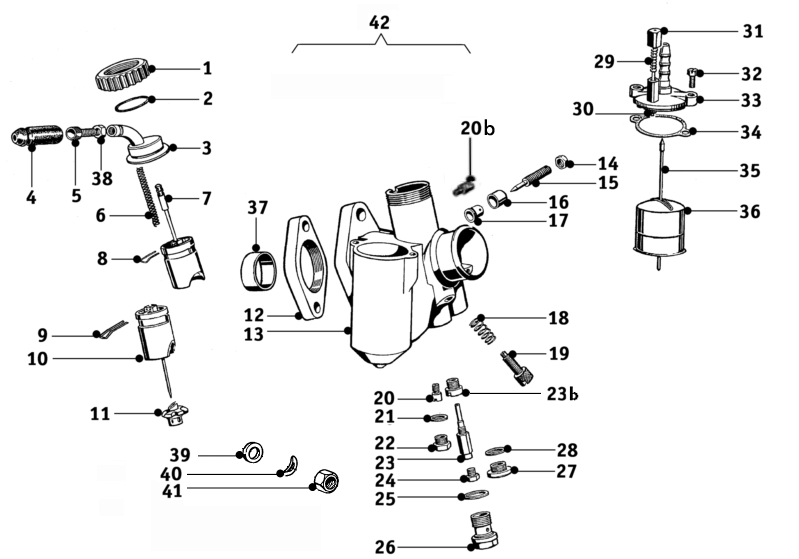

| No. |
Part nr. |
Description |
Add info. |
Qty. |
| x |
13115590039 |
Gasket set carburetor |
all models |
2 |
| 1 |
13110039215 |
Cover ring, M34x1 - 13 mm |
R51/2 - R67/3 |
2 |
|
13110039216 |
Cover ring, M38x1 |
R68 |
2 |
| 2 |
13110042149 |
Rubber ring |
|
2 |
| 3 |
13110039111 |
Cover plate, left |
R51/2 - R67/3 |
1 |
|
13110039112 |
Cover plate, right |
R51/2 - R67/3 |
1 |
|
13110039218 |
Cover plate, left |
R68 |
1 |
|
13110039219 |
Cover plate, right |
R68 |
1 |
| 4 |
13110042111 |
Rubber boot |
|
2 |
| 5 |
13110039178 |
Cable adjusting screw |
|
2 |
| 6 |
13110039169 |
Spring |
|
2 |
| 7 |
13110039172 |
Needle - 46 921 |
R51/3 |
2 |
|
13110039174 |
Needle - 46 932 |
R67 - R67/3 |
2 |
|
13110039272 |
Needle - 46 934 |
R68 |
2 |
|
13110039274 |
Needle - 46 255 |
R51/3 - R68 |
2 |
| 8 |
13110039175 |
Retaining clip, old model |
|
2 |
| 9 |
13110039176 |
Retaining clip |
|
2 |
| 10 |
13110039119 |
Throttle slide |
R51/2 - R67/3 |
2 |
|
13110039116 |
Throttle slide |
R68 |
2 |
| 11 |
13110039128 |
Insert Bing 25-050-5 (Nr. 5) |
R51/2 - R67/3 |
2 |
| 12 |
13110042146 |
Gasket |
R51/2 - R67/3 |
2 |
|
13110042147 |
Gasket |
R68 |
2 |
| 13 |
13110039205 |
Carburetor housing - left |
R51/2 |
2 |
|
13110039206 |
Carburetor housing - right |
R51/2 |
2 |
| 14 |
13110039184 |
Jam nut idle mix |
|
2 |
| 15 |
13110039180 |
Idle mix screw, short |
R51/2 |
2 |
|
13110039181 |
Idle mix screw, long |
R51/3 - R68 |
2 |
| 16 |
13110039185 |
Idle mix screw cap |
R51/3 - R68 |
2 |
| 17 |
13110039183 |
Idle mix screw sleeve |
R51/3 - R68 |
2 |
| 18 |
13110039170 |
Spring 13 mm |
|
2 |
|
13110039171 |
Spring 15 mm |
|
2 |
| 19 |
13110039527 |
Stop screw |
|
2 |
|
13110039151 |
Stop screw, old |
|
2 |
|
13110039123.6 |
Repair threaded bush |
|
|
| 20 |
13110039235 |
Idle jet 40 |
R51/2 |
2 |
|
13110039137 |
Idle jet 35 |
|
2 |
| 20b |
13110039140 |
Idle jet |
R51/2 |
2 |
| 21 |
13110042126 |
Gasket ring |
|
2 |
| 22 |
13110039196 |
Screw cap |
|
2 |
| 23 |
13110039123 |
Needle jet 1208 |
|
2 |
|
13110039124 |
Needle jet 1308 |
|
2 |
|
13110039123.6 |
Repair threaded bush |
|
|
| 23b |
13110039194 |
Threaded insert 50-390 |
<>R67/3 |
2 |
| 24 |
13110039243 |
Main jet 90 |
R51/2 |
2 |
|
13110039143 |
Main jet 100 |
R51/2, R51/3 |
2 |
|
13110039144 |
Main jet 110 |
R67 - R67/3 |
2 |
|
13111337062 |
Main jet 105 |
R51/3 |
2 |
|
13110039245 |
Main jet 115 |
R68 |
2 |
| 25 |
13110042130 |
Gasket ring |
|
2 |
| 26 |
13110039197 |
Screw cap |
M15x1 |
2 |
| 27 |
13110039198 |
Screw cap |
|
2 |
|
13110039195 |
Screw cap |
1/24/141, 142, 159, 169 |
2 |
| 28 |
13110042134 |
Gasket ring |
|
2 |
|
13110042135 |
Gasket ring |
1/24/141, 142, 159, 169 |
2 |
| 29 |
13110039164 |
Tickler spring |
|
2 |
|
13110039165 |
Tickler split pin |
old model cover |
2 |
| 30 |
13110039262 |
Safety washer |
|
2 |
| 31 |
13110039260 |
Tickler |
|
2 |
| x |
13110039262 |
Circlip for tickler |
depending on tickler model |
2 |
| x |
07119945055 |
Split pin for tickler |
depending on tickler model |
2 |
| x |
13110039262.A |
Safety washer for tickler |
depending on tickler model |
2 |
| 32 |
13110039156 |
Hex screw |
|
4 |
| x |
13110039193 |
Spring washer |
for nr. 32 hex screw |
4 |
| 33 |
13111252176 |
Cover complete |
R51/3 - R68 |
2 |
| 34 |
13110042150 |
Gasket |
|
2 |
| 35 |
13110039288 |
Float needle |
early models |
2 |
|
13111252178 |
Float needle |
|
2 |
| 36 |
13110039187 |
Float 7 gr |
|
2 |
| 37 |
11610043168 |
Centering bushing |
R68 |
2 |
| 38 |
13110039182 |
Hex nut |
|
2 |
| 39 |
07119931065 |
Washer |
8.4 |
4 |
| 40 |
07119932090 |
Spring washer |
|
4 |
| 41 |
07119922081 |
Hex nut |
M8 |
4 |
| 42 |
|
Carburetor 1/22/30 - right |
R51/2 |
1 |
|
|
Carburetor 1/22/29 - left |
R51/2 |
1 |
|
13110039206 |
Carburetor 1/22/40 - right |
R51/2 |
1 |
|
13110039205 |
Carburetor 1/22/39 - left |
R51/2 |
1 |
|
|
Carburetor 1/22/42 - right |
R51/3 |
1 |
|
|
Carburetor 1/22/41 - left |
R51/3 |
1 |
|
13110039026.A |
Carburetor 1/22/62 - right |
R51/3 |
1 |
|
13110039027.A |
Carburetor 1/22/61 - left |
R51/3 |
1 |
|
13110039026 |
Carburetor 1/24/160 - right |
R51/2, R51/3 |
1 |
|
13110039027 |
Carburetor 1/24/159 - left |
R51/2, R51/3 |
1 |
|
13110039030 |
Carburetor 1/24/142 - right |
R67/2, R67/3 |
1 |
|
13110039031 |
Carburetor 1/24/141 - left |
R67/2, R67/3 |
1 |
|
13110039034 |
Carburetor 1/26/10 - right |
R68 |
1 |
|
13110039035 |
Carburetor 1/26/9 - left |
R68 |
1 |
|
13110039056 |
Carburetor 1/26/92 - right |
R68 |
1 |
|
13110039057 |
Carburetor 1/26/91 - left |
R68 |
1 |
