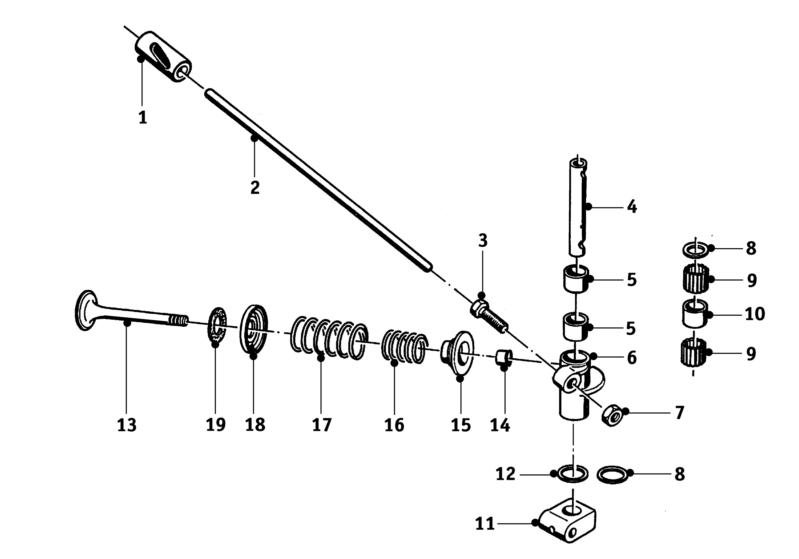

No. Part nr. Description Add info. Qty.
1 Cam follower Ø 19.96 mm (std. size) R50 - R60/2 4
Cam follower Ø 20.01 mm (1st oversize) R50 - R60/2 4
Cam follower Ø 20.04 mm (2nd oversize) R50 - R60/2 4
Cam follower Ø 19.96 mm (std. size) R69, R69S 4
Cam follower Ø 20.04/20.08 mm (oversize) R69, R69S 4
2 Push rod R50, R50/2, R50S 4
Push rod R60, R60/2 4
Push rod R69, R69S 4
3 Screw valve adjuster R50 - R60/2 4
Screw valve adjuster R69, R69S 4
4 Bearing bolt R50 - R60/2 4
Bearing bolt R69, R69S 4
5 Bushing R50 - R60/2 8
6 Rocker arm in-left, ex-right (II) R50 - R60/2 2
Rocker arm in-right, ex-left (I) R50 - R60/2 2
Rocker arm in-left, ex-right (II) R69, R69S 2
Rocker arm in-right, ex-left (I) R69, R69S 2
7 Hex nut 4
8 Washer R69, R69S 8
9 Bearing needles R69, R69S 8x17
10 Spacer bushing R69, R69S 4x1
11 Support bracket R50 - R60/2 8
Support bracket R69, R69S 8
Shim for support bracket (0.10 - 0.20 - 0.50) R50 - R69S
12 Washer R50 - R60/2 4
13 Inlet valve - Ø 7 mm smooth R50, R60 2
Exhaust valve - Ø 7 mm smooth R50, R60 2
14 Lock key L= 8 mm R50, R60 8
15 Spring cap - top R50, R60 4
13 Inlet valve - Ø 7 mm smooth R50, R50/2, R60, R60/2 2
Exhaust valve - Ø 7 mm smooth R50, R50/2, R60, R60/2 2
14 Lock key L=6 mm R50, R50/2, R60, R60/2 8
15 Spring cap - top R50, R50/2, R60, R60/2 4
13 Inlet valve - Ø 7 mm grooved R50/2, R60/2 2
Exhaust valve - Ø 7 mm grooved R50/2, R60/2 2
14 Lock key - grooved R50/2, R60/2 8
15 Spring cap - top R50/2, R60/2 4
13 Inlet valve - Ø 7 mm smooth R50S 2
Exhaust valve - Ø 8 mm smooth R50S 2
14 Lock key L=6 mm R50S 8
15 Spring cap - top R50S 4
13 Inlet valve - Ø 8 mm smooth R69, R69S 2
Exhaust valve - Ø 8 mm smooth R69, R69S 2
14 Lock key - smooth R69, R69S 8
15 Spring cap - top R69, R69S 4
13 Inlet valve - Ø 8 mm grooved R69, R69S 2
Exhaust valve - Ø 8 mm grooved R69, R69S 2
14 Lock key - grooved R69, R69S 8
15 Spring cap - top R69, R69S 4
16 Valve spring inner R50 - R60/2 4
17 Valve spring outer R50 - R60/2 4
18 Spring cap - bottom R50 - R60/2 4
16 Valve spring inner R69, R69S 4
17 Valve spring outer R69, R69S 4
18 Spring cap - bottom R69, R69S 4
19 Isolation ring R69, R69S 4
