| No. |
Part nr. |
Description |
Add info. |
Qty. |
| x |
Table |

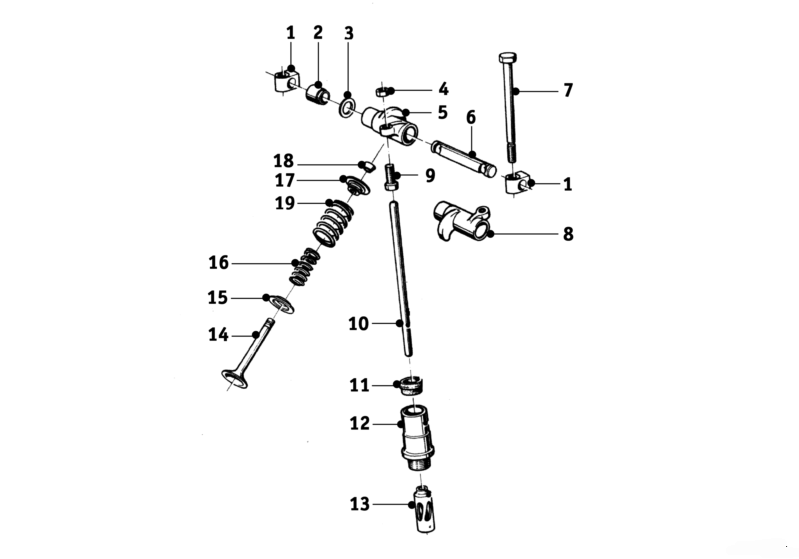

Detailed overview of all valve types |
& related components |
|
| 1 |
11330034110 |
Support bracket |
|
4 |
|
11330034110.x |
Shim for support bracket |
0.10 - 0.20 - 0.50 |
|
| 2 |
11330034140 |
Bushing |
18mm |
4 |
| 3 |
11330034112 |
Washer |
|
4 |
| 4 |
11331744331 |
Nut |
|
2 |
| 5 |
11330034707 |
Rocker arm - exhaust |
|
1 |
| 6 |
11330034130 |
Bearing bolt |
|
2 |
| 7 |
11120021136 |
Hex bolt |
M10x130 - SW14 |
4 |
| 8 |
11330034708 |
Rocker arm - inlet |
|
1 |
| 9 |
11330034126 |
Valve adjustment screw |
|
2 |
| 10 |
11320033122 |
Valve pushrod |
L = 174 mm |
2 |
| 11 |
11110033114 |
Rubber grommet |
|
2 |
| 12 |
11320033110 |
Tappet guide |(hexagon) |
R26 |
2 |
|
11320033501 |
Tappet guide (round) |
R27 |
2 |
| 13 |
11320033127 |
Cam follower, std. size |
Ø 19,96 mm |
2 |
|
11320033128 |
Cam follower, 1st oversize |
Ø 20.01 mm |
2 |
|
11320033129 |
Cam follower, 2nd oversize |
Ø 20.04 mm |
2 |
| 14 |
11340026101 |
Inlet valve - 8 mm lock key, smooth |
Ø 34 mm - only R26 < VIN 351 914 |
1 |
|
11340026109 |
Exhaust valve - 8 mm lock key, smooth |
Ø 32 mm - only R26 < VIN 351 914 |
1 |
|
11340026501 |
Inlet valve - 6 mm lock key, smooth |
Ø 34 mm |
1 |
|
11340026509 |
Exhaust valve - 6 mm lock key, smooth |
Ø 32 mm |
1 |
|
11340026170 |
Inlet valve - lock key with 2 grooves |
Ø 34 mm (rotating) |
1 |
|
11341251472 |
Exhaust valve - lock key with 2 grooves |
Ø 32 mm (rotating) |
1 |
| 15 |
11340026128 |
Spring cap |
|
2 |
| 16 |
11340026110 |
Valve spring, inner |
|
2 |
| 17 |
11340026132 |
Upper spring cap |
for 8 mm lock key |
2 |
|
11340026832 |
Upper spring cap |
for 6 mm lock key |
2 |
|
11340026180 |
Upper spring cap |
For valve with 2 grooves |
2 |
| 18 |
11340026124 |
Valve lock key |
8 mm smooth |
4 |
|
11340026824 |
Valve lock key |
6 mm smooth |
4 |
|
11340026460 |
Valve lock key |
For valve with 2 grooves |
4 |
| 19 |
11340026118 |
Valve spring, outer |
|
2 |
