| No. | Part nr. | Description | Add info. | Qty. |
|---|---|---|---|---|

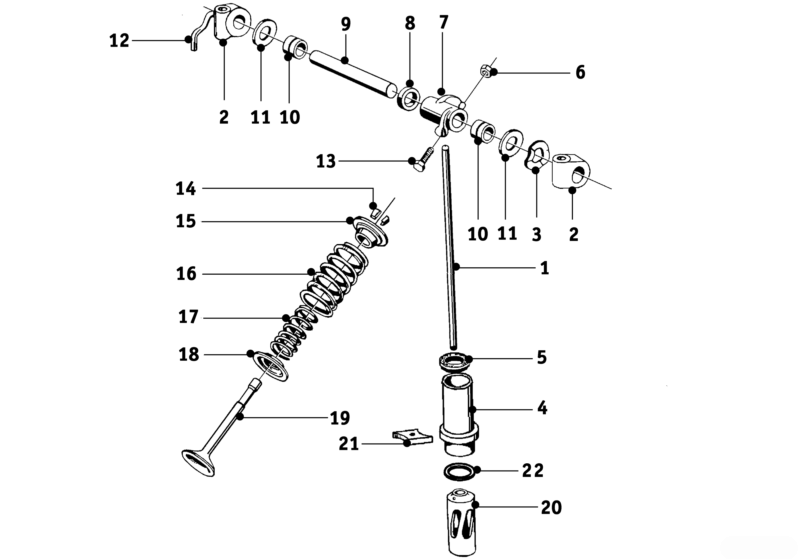

| x | Table | Detailed overview of all valve types | & related components | |
| 1 | 11320033120 | Valve pushrod | L = 183.5 mm | 2 |
| 2 | 11330034108 | Supporting bracket | R24, R25 | 4 |
| 3 | 11330034112 | Washer | 2 | |
| 4 | 11320033108 | Pushrod tube | R25 | 2 |
| 5 | 11110033112 | Rubber grommet | 2 | |
| 6 | 11331744331 | Nut | 2 | |
| 7 | 11330034114 | Rocker arm - exhaust | 1 | |
| 11330034116 | Rocker arm - inlet | 1 | ||
| 8 | 11330034183 | Bushing | 2 | |
| 9 | 11330034100 | Bearing bolt | 2 | |
| 10 | 11330034118 | Bushing | 4 | |
| 11 | 11330034112 | Washer | 4 | |
| 12 | 11330034104 | Oil tube - exhaust side | 1 | |
| 11330034106 | Oil tube -inlet side | 1 | ||
| 13 | 11330034166 | Screw | M8x1 | 2 |
| 14 | 11340026124 | Valve lock key | 4 | |
| 15 | 11340026132 | Upper spring plate | R25 | 2 |
| 16 | 11340026118 | Valve spring | 2 | |
| 17 | 11340026110 | Valve spring | 1 | |
| 18 | 11340026128 | Spring cap | R25 | 2 |
| 19 | 11340026101 | Inlet valve | Ø 34 mm | 1 |
| 11340026109 | Exhaust valve | Ø 32 mm | 1 | |
| 20 | 11320033127 | Cam follower | 2 | |
| 21 | Retaining plate | 1 | ||
| 22 | 07119963451 | Gasket ring | R24 | 2 |
