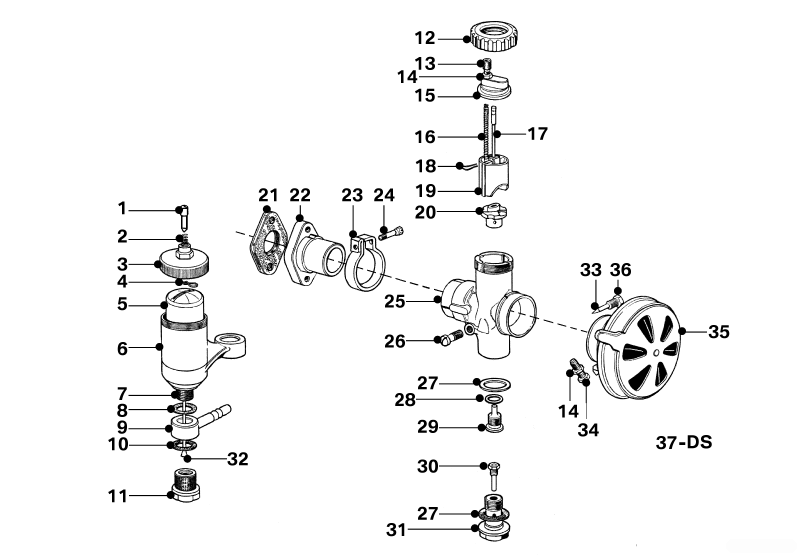

Carburetor I R24 - R25/3 - Salis Parts Salis Parts

Welcome to Salis Parts

No.	Part nr.	Description	Add info.	Qty.
x	13110039000	Bing carburetor 1/22/27	R24	1
1	13110039160	Tickler	R24	1
	13110039161	Tickler	R25 - R25/3	1
2	00000016244	Tickler spring		1
3	00000011118	Cover		1
4	00000016361	Tickler split pin		1
5	13110039186	Float		1
6	00000010931	Float chamber		1
8	13110042120	Seal ring		1
9	13110039190	Fuel hose connection - straight	R25, R25/2	1
	13110039191	Fuel hose connection - sloping	R25/3	1
10	00000016440	Seal ring		1
11	00000013065	Filter screw	w/o filter	1
12	00000010461	Cover ring		1
13	13110039178	Cable adjustment screw		1
14	13110039184	Hex nut		1
15	13110039110	Cover plate	R24
	13110039109	Cover plate	R25	1
16	13110039169	Spring		1
17	13110039172	Needle		1
18	13110039175	Needle clip		1
19	13110039118	Throttle slide		1
20	13110039126	Insert Gr. 3		1
21	13110042002	Gasket Ø 22 mm	R24	1
	13110042146	Gasket	R25	1
22	00000017321	Flange		1
23	00000016170	Clamp		1
24	00000015720	Screw for clamp		1
26	00000017158	Air jet		1
27	00000016442	Seal ring		2
28	00000016424	Seal ring		1
29	00000012239	Needle jet	Gr. 2,68	1
30	13110039142	Main jet	Gr. 95	1
31	00000013075	Screw cap		1
32	13110039188	Float needle		1
33	13110039180	Air regulating screw		1
34	00000015715	Stop screw		1
35	13720043000	Air filter	R24 - R25/2	1
	13720043000.7	Reducing bush	R24 - R25/2	1
36	13110039184	Jam nut		1
37	13110039006DS	Gasket set	R25, R25/2, R25/3	1
