Kick starter R51/2 - R68 - Salis Parts Salis Parts

Welcome to Salis Parts

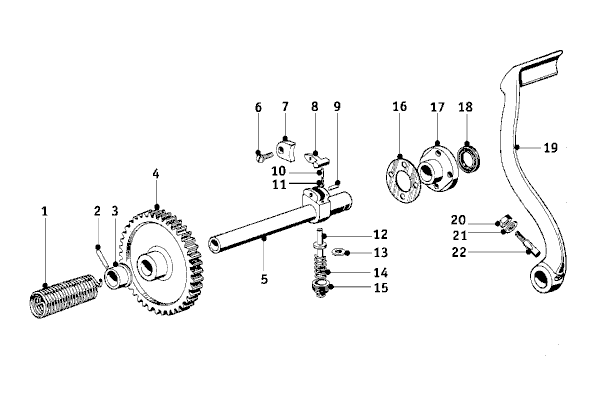

No.	Part nr.	Description	Add info.	Qty.
1	23511056225	Spring kickstarter		1
2	07119943088	Grooved pin		1
3	23511056216	Bushing		1
4	23511056269	Kickstarter gear D=110mm	R51/2	1
	23511056270	Kickstarter gear D=108mm	R51/3 - R68	1
5	23511056025	Kickstarter shaft		1
6	23111006220	Countersunk screw	M6x1x15 60°	1
7	23511006200	Kickstarter stop plate		1
8	23511056229	Kickstarter ratchet		1
9	23511056233	Pin for kickstarter ratchet		1
10	23511056200	Pin for kickstarter ratchet		1
11	23511056208	Spring kickstarter ratchet		1
12	23511056265	Stop pin		1
13	23511056261	Washer for stop pin		1
14	23511056237	Spring		1
15	23511056241	Screw for kickstarter stop spring		1
16	11110002188	Gasket (see also nr. 23)		1
17	23511056220	Bush bearing	R51/2	1
x	23121056245	Cuff (seal) kickstarter	R51/2	1
x	23511056212	Cover for seal	R51/2	1
x	07119901375	Lens head counter sunk screw M5x22	R51/2	4
x	23511056221	Bush bearing	R51/3 - R68	1
x	07119901370	Lens head counter sunk screw M5x18	R51/3 - R68	4
18	23121056253	Seal	20x32x7	1
19	23511056257	Kickstarter lever		1
20	07119922081	Nut	M8	1
21	07119932090	Washer	B8	1
22	23511056204	Lock screw		1
23	23000008426	Gasket set gearbox	R51/3 - R68
x	23514034257	Kickstart lever stop		1
