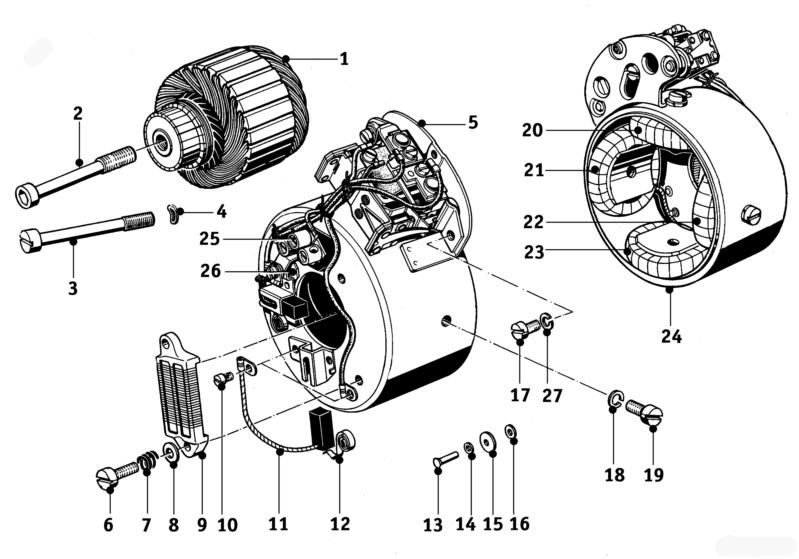

| No. |
Part nr. |
Description |
Add info. |
Qty. |
| 1 |
12318002202 |
Armature 60W, 17 mm taper |
R50, R60, R69 |
1 |
|
12318002203 |
Armature 60W, 20 mm taper |
R50/2, R50S, R60/2, R69S |
1 |
|
12318002315 |
Armature 75W - overhauled |
R50/2, R50S, R60/2, R69S |
1 |
|
12318002330 |
Armature 12V 100W |
R50/2, R50S, R60/2, R69S |
1 |
|
12318002347 |
Armature 12V 180W AC |
R50/2, R60/2, R69S |
1 |
|
12318002031 |
Generator & armature 60W - overhauled |
R50/2, R50S, R60/2, R69S |
1 |
|
12318002032 |
Generator & armature 75W - overhauled |
R50/2, R50S, R60/2, R69S |
1 |
| 2 |
12318002205 |
Allen head hex bolt |
M8x60 |
1 |
| 3 |
07119919960 |
Allen head hex bolt for 60W |
M6x70 |
2 |
|
07119919963 |
Allen head hex bolt for 100W |
R50/2 - R69S, M6x75 |
2 |
| 4 |
07119932099 |
Waved washer |
B6 |
1 |
| 5 |
12328008153 |
Bosch mech. voltage regulator 6V |
R50, R60, R69 |
1 |
|
12328002312 |
Bosch mech. voltage regulator 6V |
R50/2, R50S, R60/2, R69S |
1 |
|
12328002325 |
Bosch mech. voltage regulator 12V |
R50/2, R50S, R60/2, R69S |
1 |
|
12328002312.3 |
Electronic voltage regulator 6V |
|
1 |
|
12328002325.3 |
Electronic voltage regulator 12V |
|
1 |
| 6 |
12128036180 |
Fillister head screw |
|
2 |
| 7 |
12318002308 |
Spring |
|
2 |
| 8 |
12318002309 |
Washer |
|
2 |
| 9 |
12318002224 |
Field resistance 6V 60W |
R50, R60, R69 |
12 |
|
12318002307 |
Field resistance 6V 75W |
R50/2, R50S, R60/2, R69S |
1 |
| 10 |
07119919349 |
Fillister head screw |
M3x8 |
2 |
| 11 |
12318002106 |
Carbon brushes NOX 16, 7x8x18mm |
6V 60W R50 - R69S |
2 |
|
12318002310 |
Carbon brushes 13x7x21mm |
6V 75W R50/2, R50S, R60/2, R69S |
2 |
| 12 |
12318002124 |
Thrust spring 6V 60W |
|
2 |
|
|
Thrust spring 6V 75W |
Replaced by 12318002124 |
2 |
|
12418002532 |
Thrust spring 12V 100W |
|
2 |
| 13 |
x |
|
|
|
| 14 |
12118004136 |
Insulation washer |
6 mm ø |
1 |
| 15 |
12318002321 |
Insulation washer |
|
1 |
| 16 |
07119931620 |
Washer |
|
1 |
| 17 |
07119919360 |
Fillister head screw |
M4x6 |
1 |
|
07119919380 |
Fillister head screw |
M4x12 |
1 |
| 18 |
07119933078 |
Lock washer |
|
4 |
| 19 |
07119919466 |
Fillister head screw |
M6x15 |
4 |
| 20 |
12318002216 |
Field coil 4 - 6V 60W |
R50 - R69S |
1 |
|
12318002305 |
Field coil 4 - 6V 75W |
R50/2, R50S, R60/2, R69S |
1 |
|
12318002343 |
Field coil 4 - 12V 100W |
R50/2, R50S, R60/2, R69S |
1 |
| 21 |
12318002214 |
Field coil 3 - 6V 60W |
R50 - R69S |
1 |
|
12318002304 |
Field coil 3 - 6V 75W |
R50/2, R50S, R60/2, R69S |
1 |
|
12318002342 |
Field coil 3 - 12V 100W |
R50/2, R50S, R60/2, R69S |
1 |
| 22 |
12318002212 |
Field coil 1 - 6V 60W |
R50 - R69S |
1 |
|
12318002302 |
Field coil 1 - 6V 75W |
R50/2, R50S, R60/2, R69S |
1 |
|
12318002340 |
Field coil 1 - 12V 100W |
R50/2, R50S, R60/2, R69S |
1 |
| 23 |
12318002213 |
Field coil 2 - 6V 60W |
R50 - R69S |
1 |
|
12318002303 |
Field coil 2 - 6V 75W |
R50/2, R50S, R60/2, R69S |
1 |
|
12318002341 |
Field coil 2 - 12V 100W |
R50/2, R50S, R60/2, R69S |
1 |
| 24 |
12318002301 |
Pole housing with regulator |
|
1 |
| 25 |
12318002289 |
Screw |
M5 |
4 |
| 26 |
12318002149 |
Terminal board |
|
1 |
| 27 |
07119933035 |
Lock washer B4 |
|
2 |
