The official pinstripe layout by BMW is as follows:

Wide line: 5mm
Narrow line: 1,5mm
Distance between the two lines: 4mm

Since pin striping was done by hand, it’s normal that these values were not consistent. We have an original BMW new old stock fender and we have taken multiple measurements, just to see how much variation there is. This is just 1 fender: obviously there will also be a variation between fenders.

Wide line: consistently 5 mm

Narrow line: consistently 1.5 mm

Distance between the 2 lines: varies from ~4 mm to ~5.5 mm

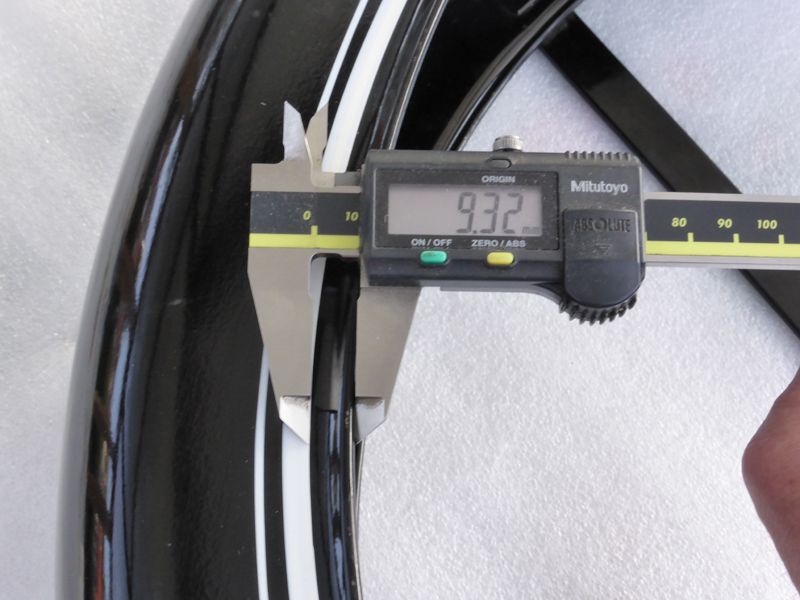

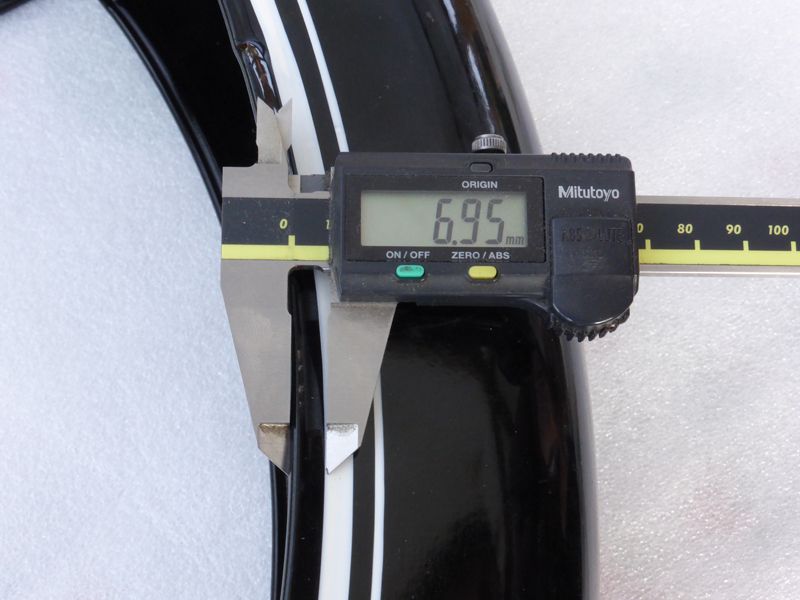

Distance between fender edge and wide line: varies from ~7 mm to ~14 mm (near the fender outer ends)



front-fender-thin-line_v1

The width of the narrow line is pretty consistent at 1.5 mm



front-fender-thick-line_v1

So is the width of the 5 mm wide line

front-fender-space-thick-and-thin-line_v1

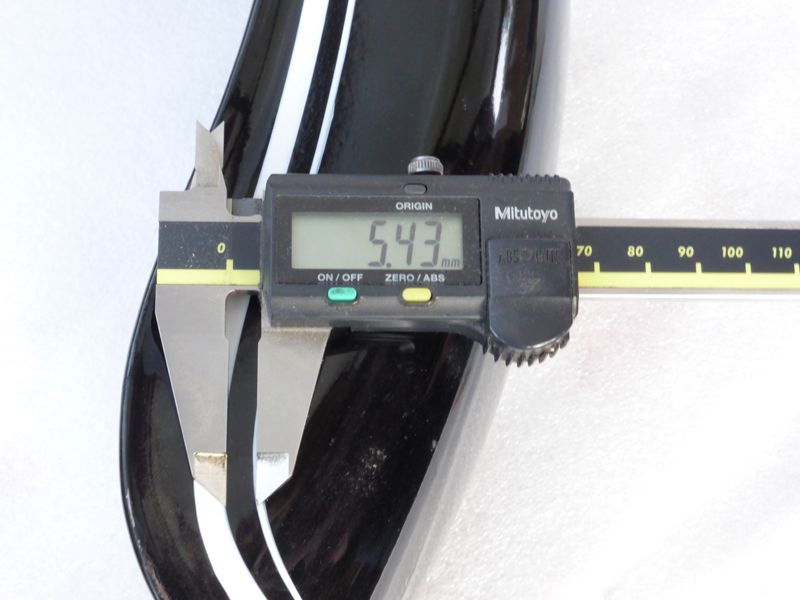

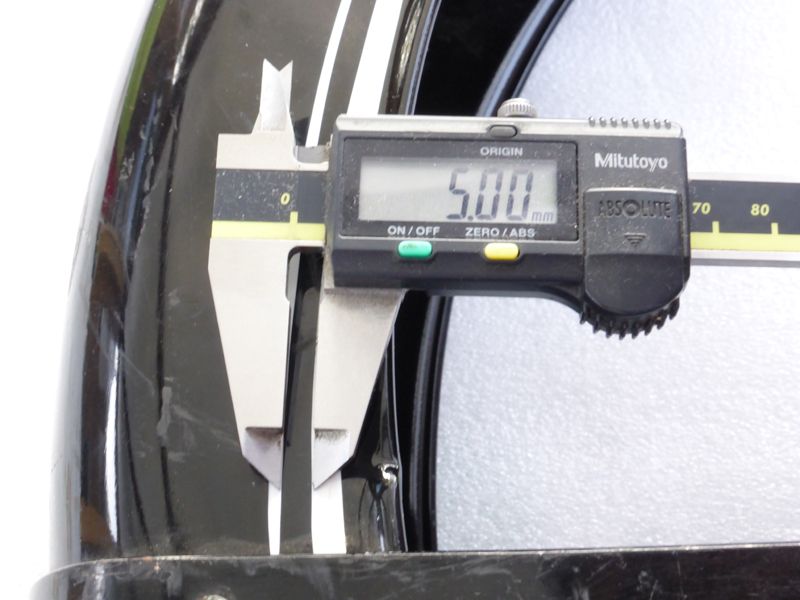

The distance between the 2 lines varies from +- 4 mm to +- 5.5 mm in the curves



front-fender-space-thick-and-thin-line_v3



front-fender-space-thick-and-thin-line_v2



fender-edge_v1

fender-edge_v2

fender-edge_v3







fender-lh-side

LH side

fender-rh-side

RH side

fender-front-rh-side

RH front side

fender-back-rh-side

RH back side

fender-back-lh-side_v1

LH back side



fender-front-lh-side_v1

LH front side

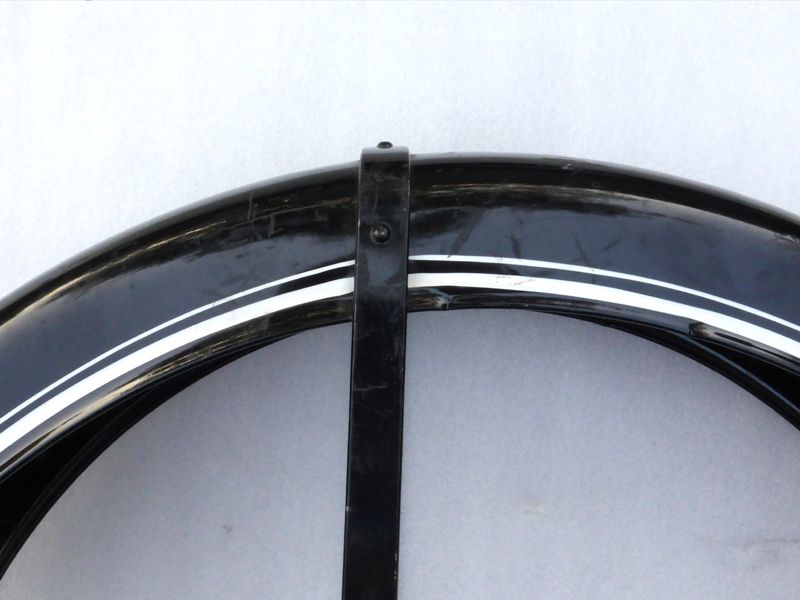

fender-bracket

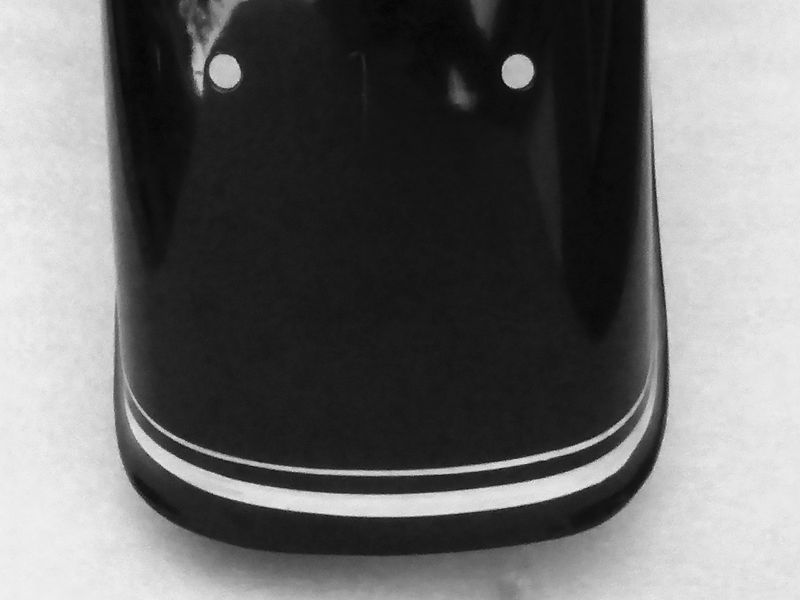

outer-end_v1



fender-inside

Nice detail: on the inside, the initials of the person who did the pin striping
